Understanding the frequency response of bipolar transistors is vital in high-frequency circuits where their ability to switch on and off rapidly and amplify signals efficiently can significantly influence circuit performance. Frequency response defines a transistor's ability to process signals at varying frequencies, crucial for radio frequency (RF) applications. Transition frequency (fT) indicates the frequency at which a transistor can amplify a signal without attenuation. Typically, bipolar transistors designed for RF use exhibit high fT values, often in the gigahertz range, allowing them to perform effectively in applications requiring swift signal processing. These values not only determine the suitability of bipolar transistors for specific uses but also influence design considerations, ensuring optimal performance of the circuit.
Power handling capability is a cornerstone in selecting bipolar transistors, especially when they are deployed in circuits operating under high loads. This parameter ensures that the transistor can endure the demands of the application without risk of damage. Saturation voltage, or VCE(sat), directly impacts the efficiency and thermal output of the transistor. Lower saturation voltages are preferred as they minimize power loss and enhance overall efficiency. According to recent studies, improving power handling limits in bipolar transistors enables better performance in high-stress environments. To choose the right transistor, one must assess power handling capabilities parallel to application demands, prioritizing those with robust performance metrics suitable for the intended environment.
Thermal stability is integral to the reliability and longevity of circuit designs incorporating bipolar transistors. Effective thermal management ensures that these components operate within safe temperature limits, prolonging their life and maintaining performance. Factors such as ambient temperature and efficient heat dissipation design significantly affect thermal performance. Employing thermal management strategies, like using heat sinks or optimizing PCB layouts, enhances the stability of transistors, protecting them from overheating. Studies on thermal management demonstrate that improved heat dissipation practices can markedly enhance circuit performance, confirming the importance of thermal stability in high-performance, reliable electronic systems.
When comparing bipolar transistors to IGBT transistors for radio frequency (RF) applications, one fundamental aspect to consider is the tradeoff between speed and power handling. Bipolar transistors typically offer superior speed, making them ideal for applications requiring rapid switching and high-frequency handling. Conversely, IGBTs excel in power handling, enabling them to operate efficiently under high current and voltage conditions which are often critical in power supply applications. Engineers frequently opt for bipolar transistors in scenarios demanding maximum switching speed, while IGBTs are favored in designs where power management is paramount. For example, in RF amplification circuits, customers may prefer bipolar transistors due to their faster response time compared to IGBTs, enhancing overall circuit performance. Industry trends indicate a continuous evaluation of these tradeoffs when selecting transistors for specific applications. As transistor technologies advance, manufacturers are increasingly seeking to balance these parameters to accommodate diverse circuit needs.
Noise performance is a crucial factor in integrated circuit designs, particularly when selecting between bipolar transistors and IGBT transistors. Bipolar transistors usually exhibit lower noise levels, making them preferable in sensitive applications like audio and RF communications where circuit integrity and signal clarity are paramount. In contrast, IGBTs may introduce higher noise, though their robust power handling capabilities might outweigh this drawback in certain contexts. Researchers often employ methodologies such as noise spectral analysis to measure and mitigate noise in integrated circuits, ensuring optimal performance. Studies have quantified noise levels among various transistor types, underscoring their influence on circuit functionality. For instance, a study showcasing noise reduction techniques using bipolar transistors demonstrated improved performance in audio amplifiers. Emphasizing noise mitigation is crucial, especially in RF communications, where even slight interference can compromise signal quality. This consideration guides engineers in choosing the appropriate transistors to enhance circuit reliability and performance.
The TO-3P-3 G1N65R035TB-N transistor from Jeking is an exceptional choice for high-power RF amplification. With a maximum DC collector current of 15A and a collector-emitter voltage of 250V, it is well-suited for applications demanding robust power handling capabilities. User reviews frequently commend its stable performance in RF circuits, often citing enhanced signal strength as a key benefit. For optimal performance, it is ideally configured in circuits where high power output is critical, and attention to thermal management can further enhance its efficiency.

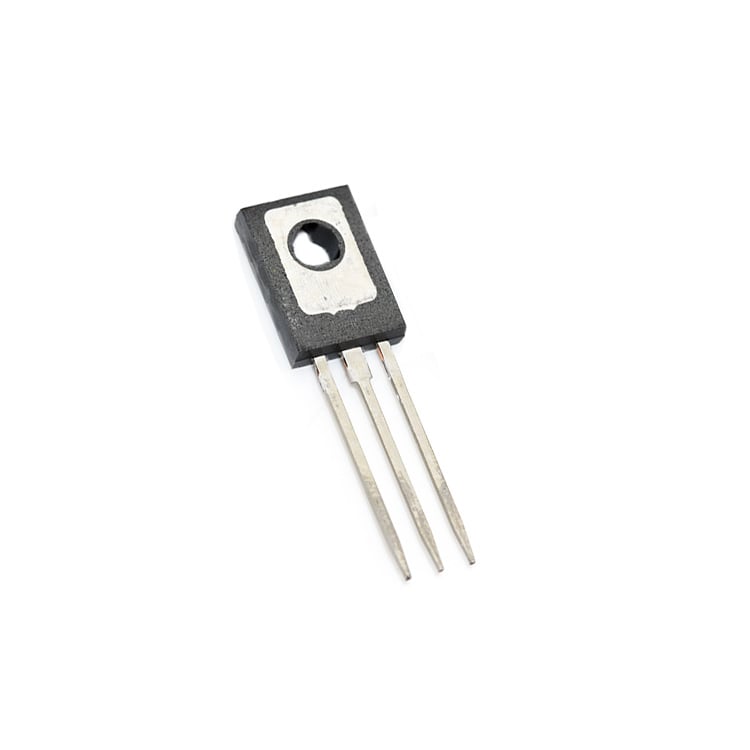

The SOT-32 BD135 transistor shines in audio frequency optimization. Known for its sound clarity and low distortion, it is a favorite in audio amplifier applications. Past scenarios have demonstrated its superiority in designs requiring enhanced audio fidelity and reliability. Users have noted its efficacy in maintaining signal integrity across varied audio setups. For maximum performance, integrating BD135 into audio circuits often involves consideration of proper heat dissipation and circuit layout to prevent frequency-related issues.

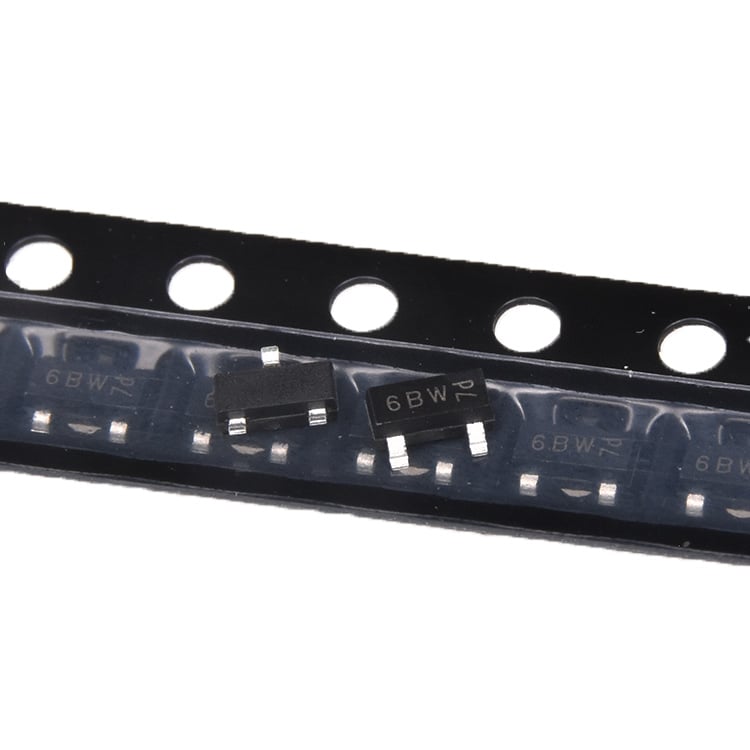

Jeking’s SOT-23 BC817-25 is ideal for compact designs requiring high-speed switching capabilities. Its 45V, 800mA rating makes it perfect for applications where rapid response times are necessary. Test environments often reveal performance advantages over similar transistors, particularly in densely-packed PCBs where space is a premium. With its small footprint, the BC817-25 is best utilized where minimal space and efficiency are valued, highlighting the importance of choosing the right component for size-constrained projects.
The 2SA1015-Y transistor is specifically designed for low-noise signal processing, making it essential for communication technology where noise levels are critical. Its unique bipolar construction provides a stable and clear signal path, essential in circuits where signal fidelity cannot be compromised. Industry standards and empirical data consistently show its superior performance in reducing noise, a crucial requirement in sensitive applications. Successful integration in various communication systems underscores its reliability and effectiveness.
The TO-92 BC546B stands out as a versatile general-purpose transistor suitable for high-frequency applications. With a collector-emitter voltage of 65V, it is reliable for various uses, from consumer electronics to industrial applications. Reviews from industry professionals frequently highlight its consistency in performance and adaptability across different circuit designs. It is best utilized in standard circuit configurations, making it a go-to choice for engineers seeking dependable components in high-frequency scenarios.
Impedance matching is a crucial concept in PCB layout that aims to maximize power transfer and minimize signal reflections in circuit designs. By ensuring that the impedance of the source matches the impedance of the load, we optimize power transfer, thereby improving circuit performance. Improper impedance matching can lead to significant signal loss, reduced performance, and increased noise levels in electronic circuits. Practical guidelines for achieving optimal impedance matching include using impedance calculators, ensuring proper trace width on PCBs, and employing matching networks such as RF transformers or stubs. Theoretical and empirical data from circuit design studies, such as those by the IEEE, substantiate these practices, illustrating how effective impedance matching contributes to efficient and reliable circuit operations.
RF grounding techniques play an essential role in maintaining signal integrity and reducing interference in PCB layouts, particularly when dealing with radio frequency devices. Effective grounding ensures that any unwanted RF signals are safely redirected to ground, preventing them from affecting the circuit's operation. Best practices for implementing effective grounding include using a ground plane, ensuring continuous and low-resistance paths, and strategically placing via stitching to connect ground planes. Examples of successful RF applications, like certain telecommunications devices, demonstrate the efficacy of these grounding techniques. Research studies emphasize common grounding pitfalls such as ground loops and the use of inadequate ground paths, and highlight resolutions to these issues, ensuring robust RF signal performance in complex circuit designs.
