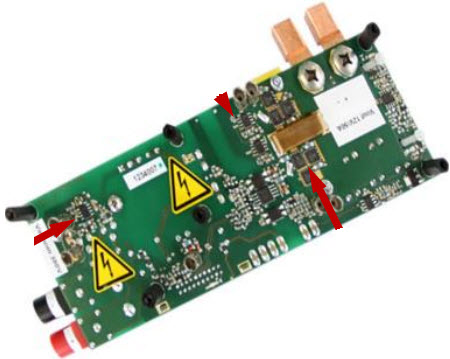

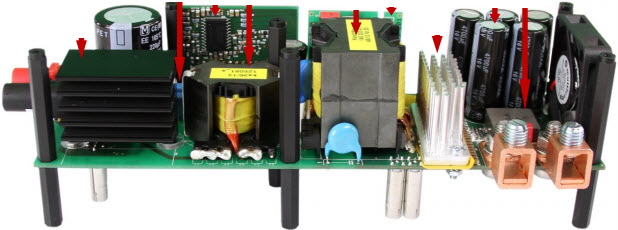

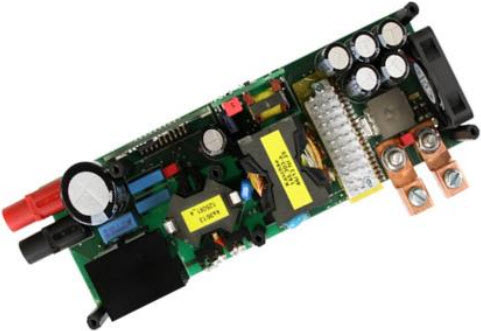

EVAL_600W_LLC_12V_C7, 600-W-Halbbrücken-LLC-Evaluierungsboard mit 600 V Cool MOS C7-Referenzdesign unter Verwendung von Teil ICE2HS01G von Infineon Technologies AG

Beschreibung
EVAL_600W_LLC_12V_C7, Evaluation Board shows how to design a Half-Bridge LLC stage of a server SMPS with the target to meet 80+ Titanium standard efficiency requirements. On this purpose there has been applied latest CoolMOS technology IPP60R180C7 600 V power MOSFET on the primary side and OptiMOS low voltage power MOSFET in SuperSO8 BSC010N04LS in the synchronous rectification secondary stage, in combination with QR CoolSET ICE2QR2280Z, hi-low side driver 2EDL05N06PF, low-side Gate Driver 2EDN7524F and a LLC Controller ICE2HS01G for the analog or XMC4200 in the digital version

Key Features
Conversion Type: DC to DC
Input Voltage: 350 to 410 V
Output Voltage: 12 V
Output Current: 50 A
Output Power: 600 W
Efficiency: 97.5 %
