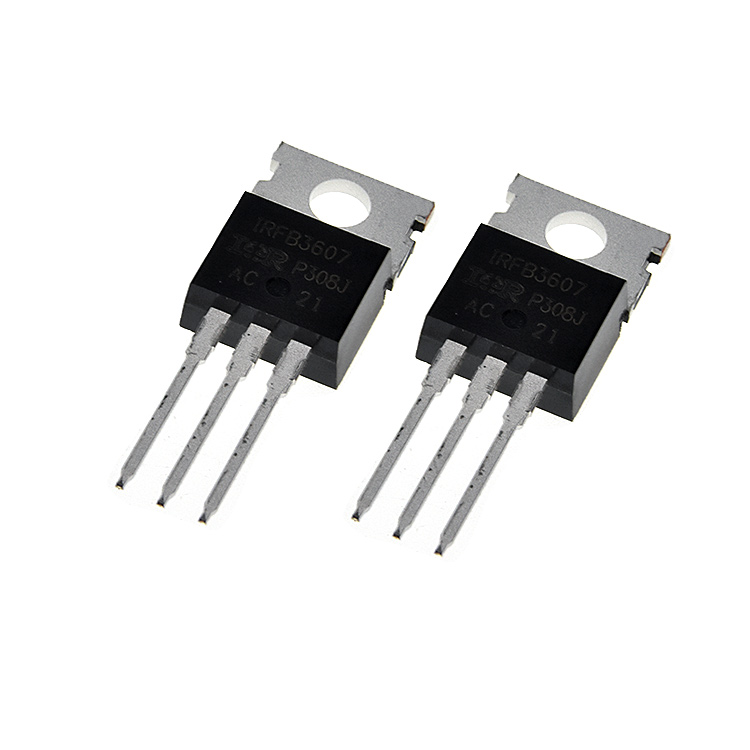

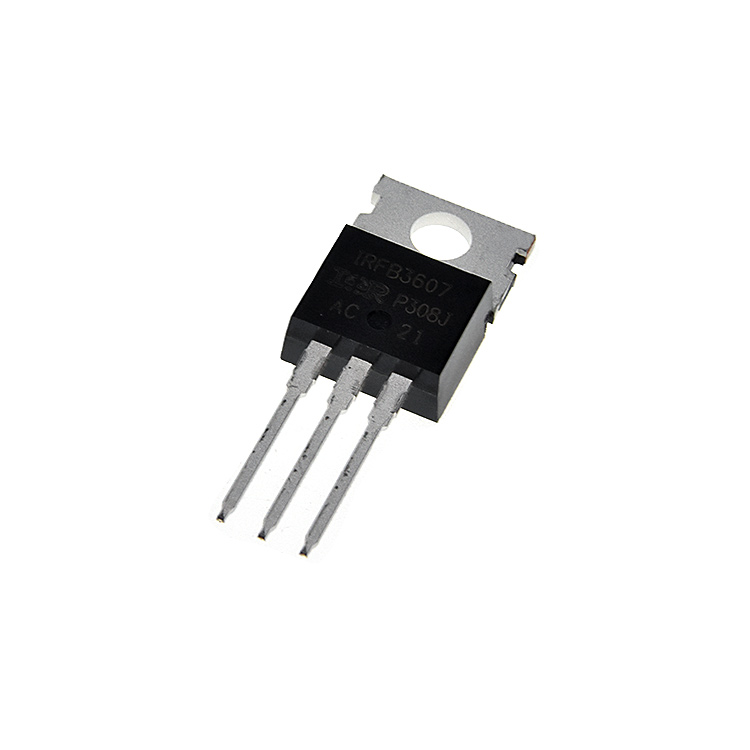

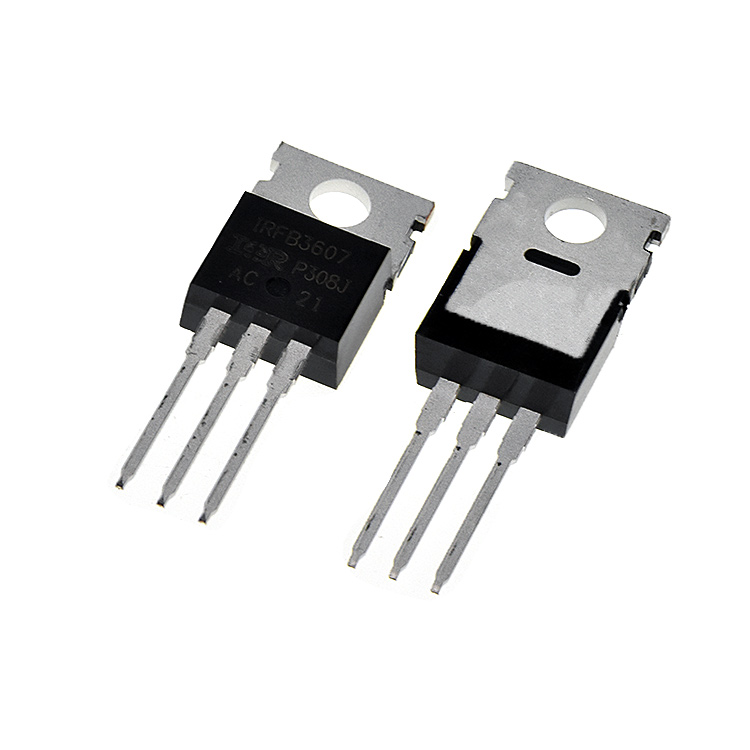

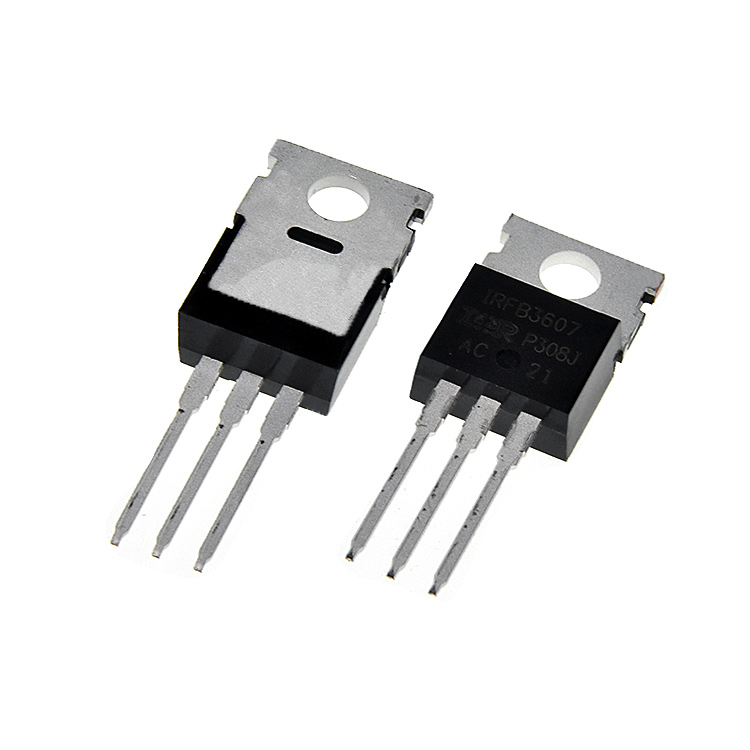

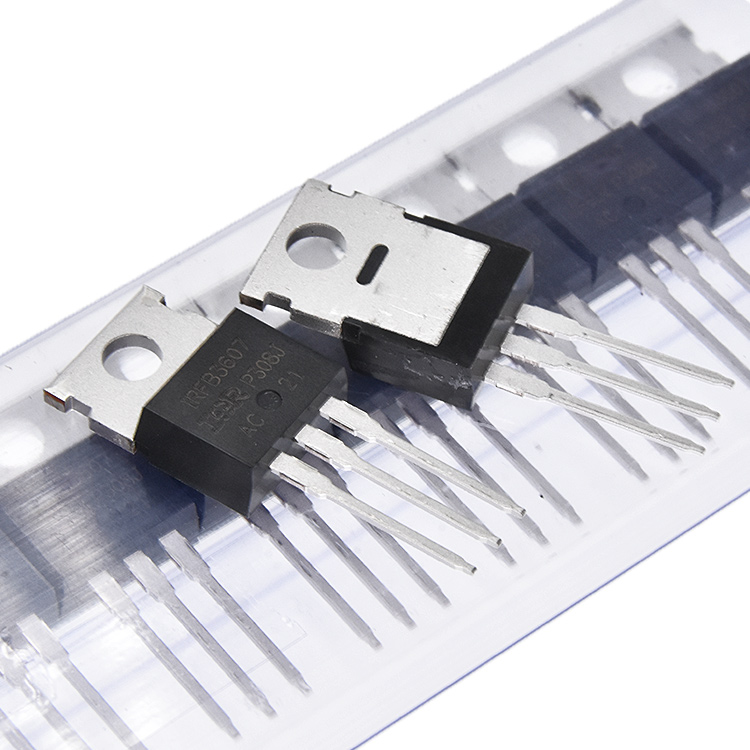

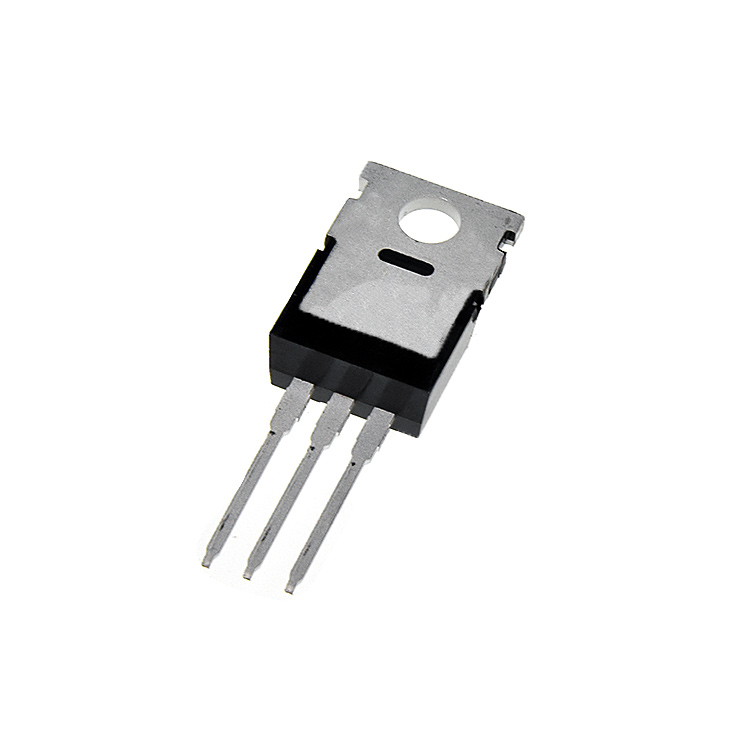

Jeking N-CH 75V 80A TO220AB MOSFET IRFB3607PBF

The Jeking N-CH 75V 80A TO220AB MOSFET IRFB3607PBF is a high-power metal-oxide-semiconductor field-effect transistor (MOSFET) designed for robust performance in demanding applications. This N-channel device offers a maximum voltage rating of 75V and a current handling capacity of 80A, making it suitable for power electronics and motor control systems. The TO220AB package provides a durable and thermally efficient form factor, ensuring optimal heat dissipation during operation.

Key Features:

  • N-channel MOSFET for efficient switching and linear amplification
  • High voltage rating of 75V for reliable operation in power circuits
  • Current handling capacity of 80A for robust performance
  • TO220AB package for excellent thermal management
  • Ideal for power electronics, motor control, and other high-current applications
  • Robust construction for long-term reliability and durability
Drain to Source Voltage (Vdss) 75 V
Current - Continuous Drain (Id) @ 25°C 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 9mOhm @ 46A, 10V
Vgs(th) (Max) @ Id 4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 84 nC @ 10 V
Vgs (Max) ±20V
