AT572D940-EB, Evaluation Board for evaluating chip performance and developing code for applications based on the DIOPSIS 940 HF

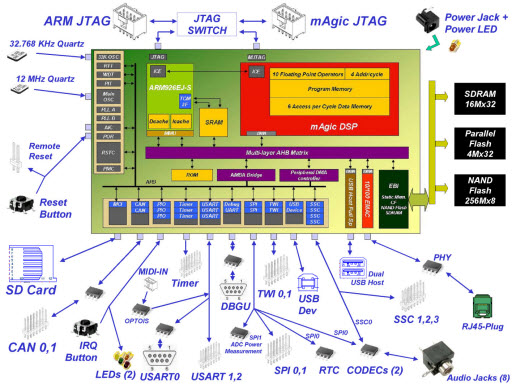

Feature：AT572D940-EB, Evaluation Board for evaluating chip performance and developing code for applications based on the DIOPSIS 940 HF. From now on DIOPSIS 940 HF will be referred to as D940HF. The DEB is a system composed of two boards: the D940HF CPU Module (DCM) and the D940HF Back Module (DBM). The DCM is plugged into the DBM by using SMD board connectors
Embedded System Type：DSP
Core Processor：ARM9
application：Audio Interfaces
