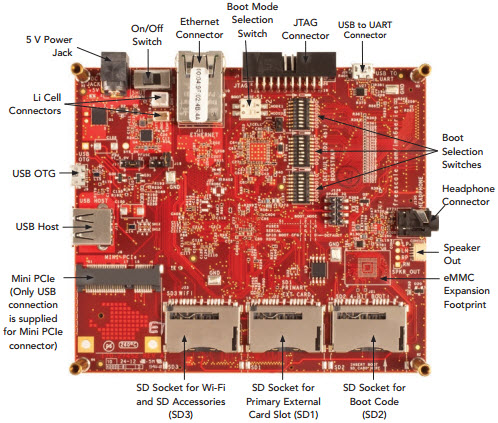

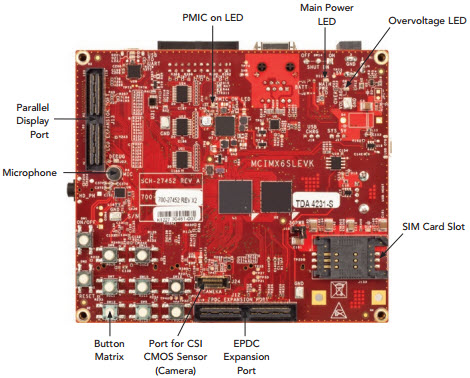

IMX6SLEVK, i.MX 6SoloLite Evaluation Kit based on i.MX 6SoloLite Applications Processor

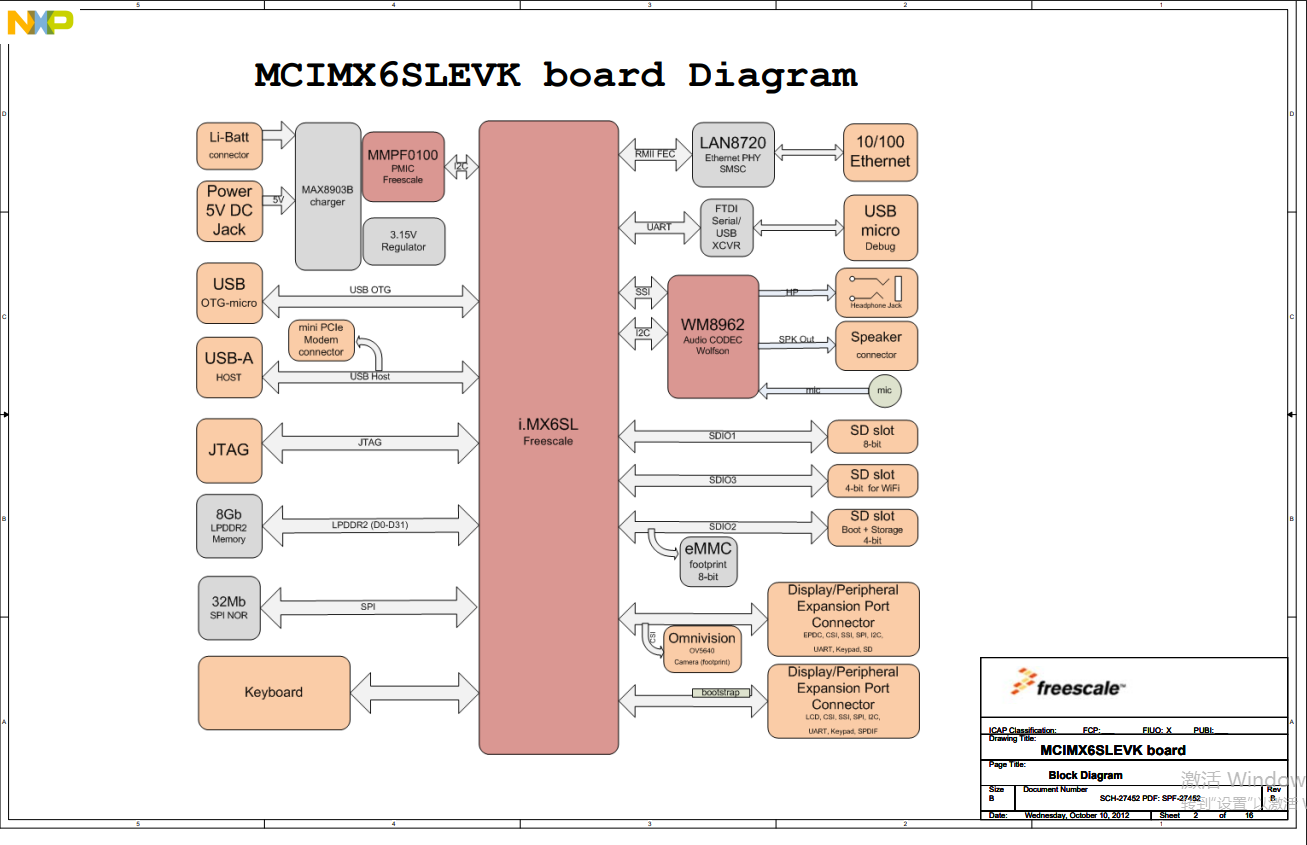

Feature：IMX6SLEVK, Evaluation Kit (EVK) based on the i.MX 6SoloLite applications processor. The i.MX 6SoloLite is the first system-on-a-chip (SoC) with a high-performance 1 GHz ARM Cortex-A9 CPU and integrated E Ink and Sipix display controllers to drive current and next-generation electronic paper display (EPD) panels. This EVK enables EPD and LCD or HDMI display, touch control, audio playback as well as the ability to add WLAN, a 3G modem or Bluetooth technology. The EVK was designed to facilitate software development with the goal of faster time to market through the support of both Linux android operating systems
Embedded System Type：SoC
Family Name：i.MX 6
Core Processor：ARM Cortex-A9
application：Entertainment Devices，Human Machine Interface (HMI)，Infotainment System，Intelligent Controller，IP Phone，Portable Medical Devices，Smart Book，Tablet
