TIDEP0074, Packet Processing Engine Reference Design for IEC61850 GOOSE forwarding

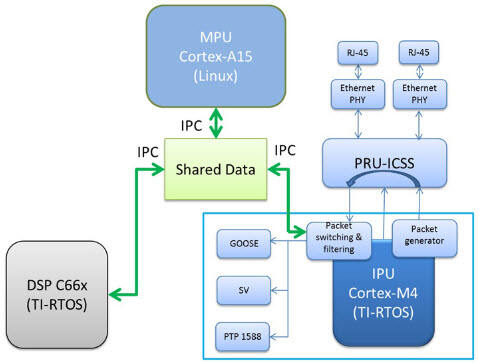

Feature：TIDEP0074, Packet Processing Engine Reference Design for IEC61850 GOOSE forwarding. The TIDEP0074 reference design demonstrates packet switching and filtering logic implemented in the M4 core of AM572x based upon the Ether type, MAC address and Application ID (APPID) of GOOSE packets received from the PRU-ICSS. Packets are filtered and routed to destinations in order to allow the time-critical events defined in substation communication standard IEC 61580 to be serviced in a dedicated core. The design additionally shows multi-core communication between the ARM Cortex-A15, Cortex-M4 and DSP C66x cores of the AM572x while Linux runs on the A15s and TI-RTOS runs on the M4 and DSP cores
Family Name：Sitara AM57x
Core Processor：ARM Cortex-M4
application：Communications Infrastructure；Protection Equipment；Smart Grid
