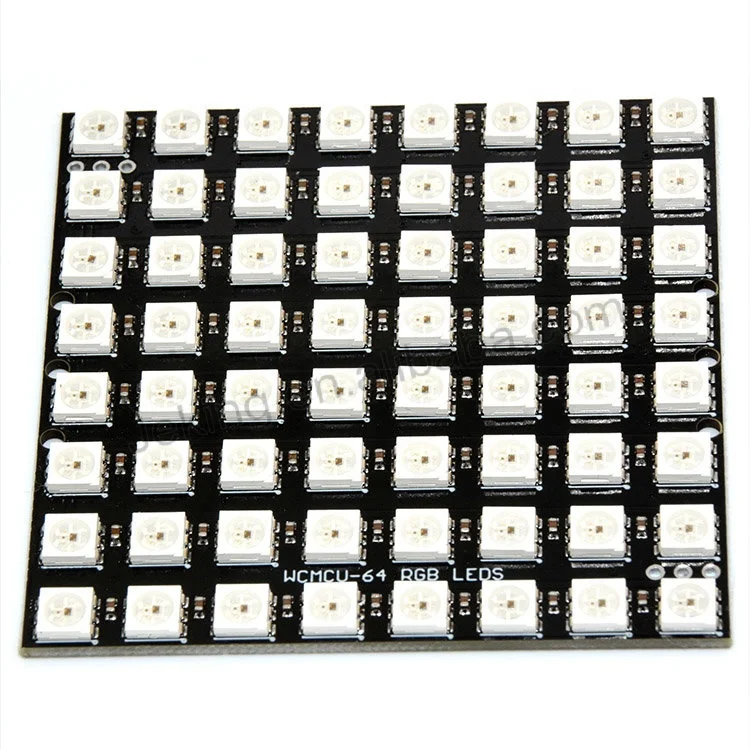

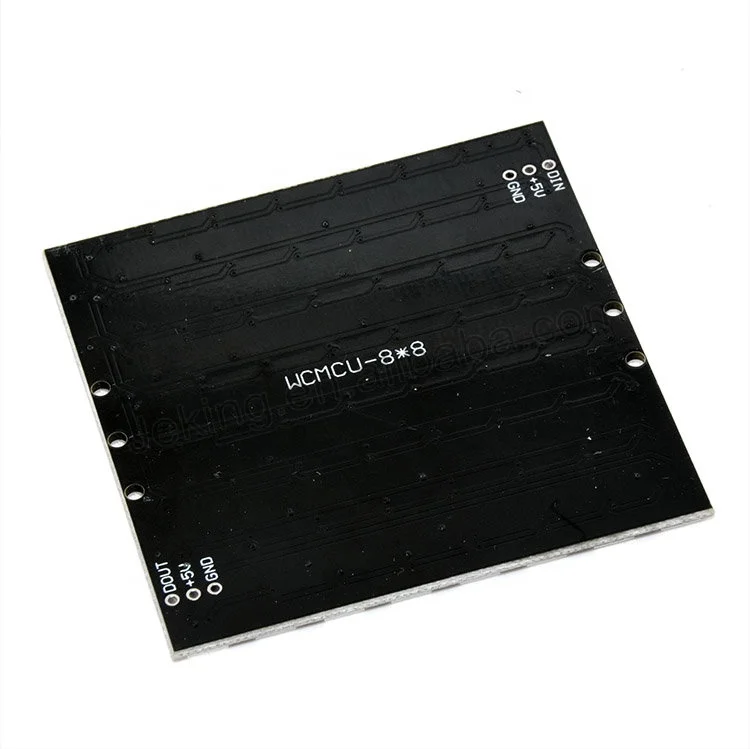

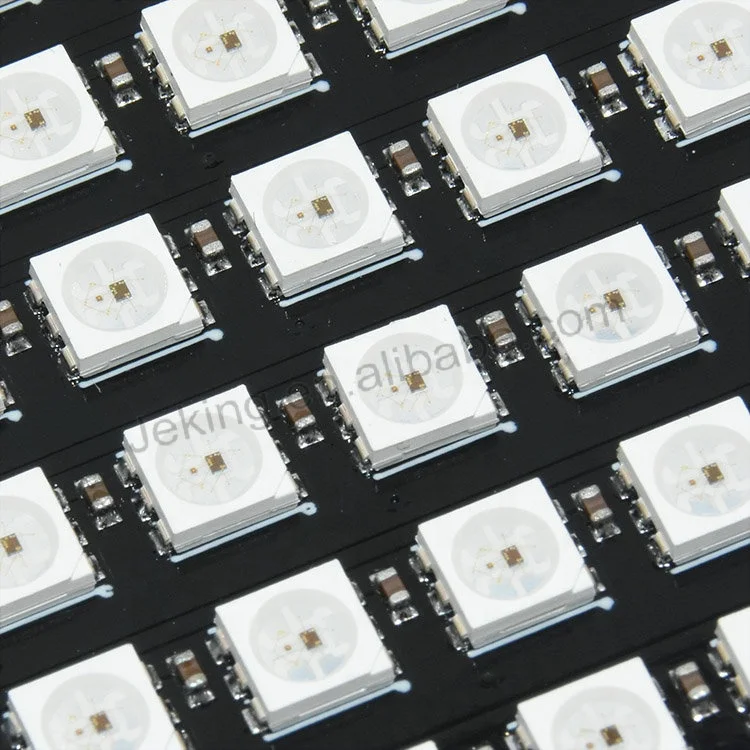

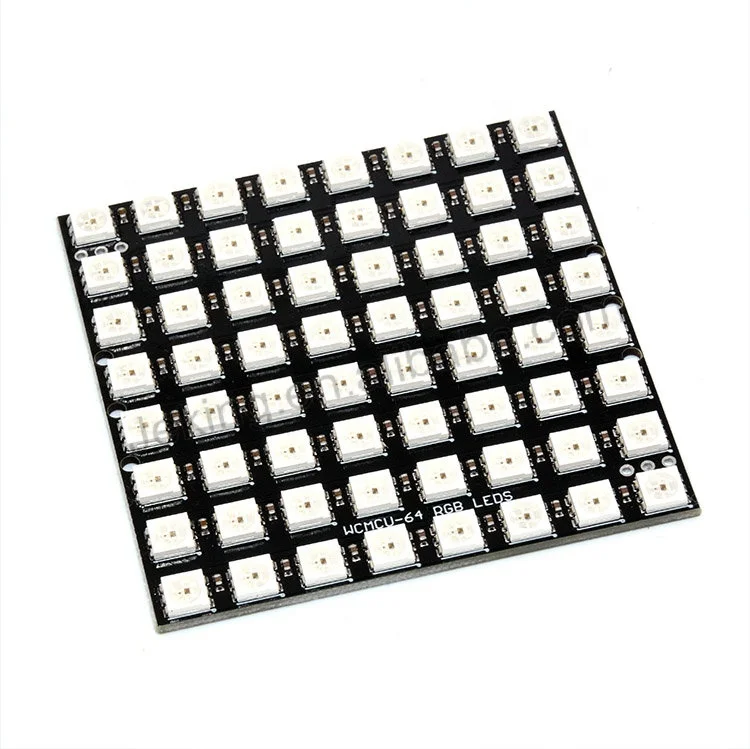

Great Price on New Design 64-Bit WS2812 RGB LED Module Board High Performance ICs

Models

WS2812

Type

RGB LED Module

Feature

Single-wire communication protocol: Uses single-line return-to-zero code for communication, receiving 24-bit data (in G-R-B order, with the most significant bit first) via DIN pins to control LED color. Each LED receives the data and forwards the remaining data to the next connected LED; Data format: Each LED requires 24 bits of data (8 bits green + 8 bits red + 8 bits blue), supporting 256 grayscale levels and displaying up to 16.77 million colors.

Application

LED display: full-color illuminated letters, pixel screens, irregular screens, and other decorative lighting; smart devices: ambient lighting, smart home status indicators

Input voltage:

3.5–5.5V (recommended 5V), operating current for a single LED is approximately 20–60mA

Communication speed:

 800 Kbps, supports a refresh rate of 30 frames per second (when cascading 1024 LEDs)
