Item |

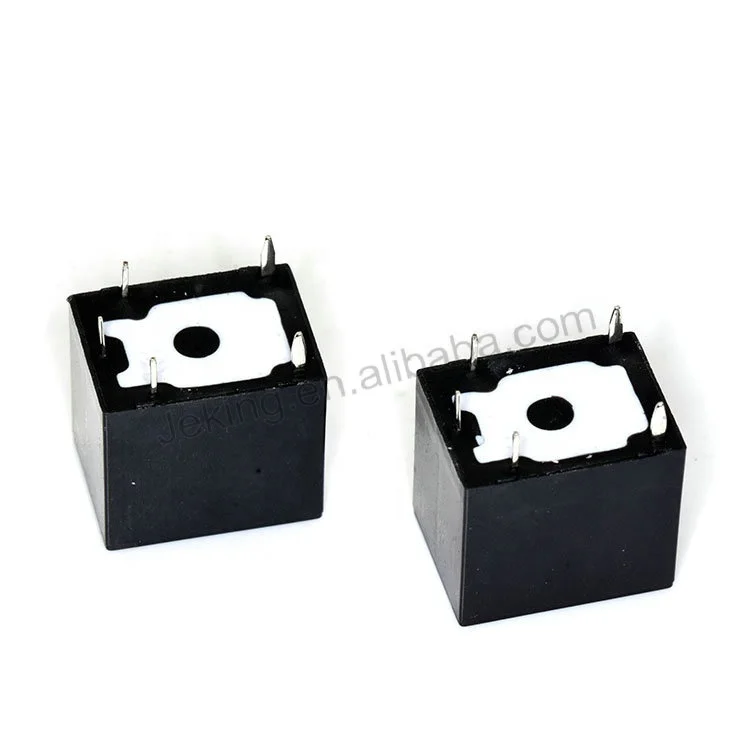

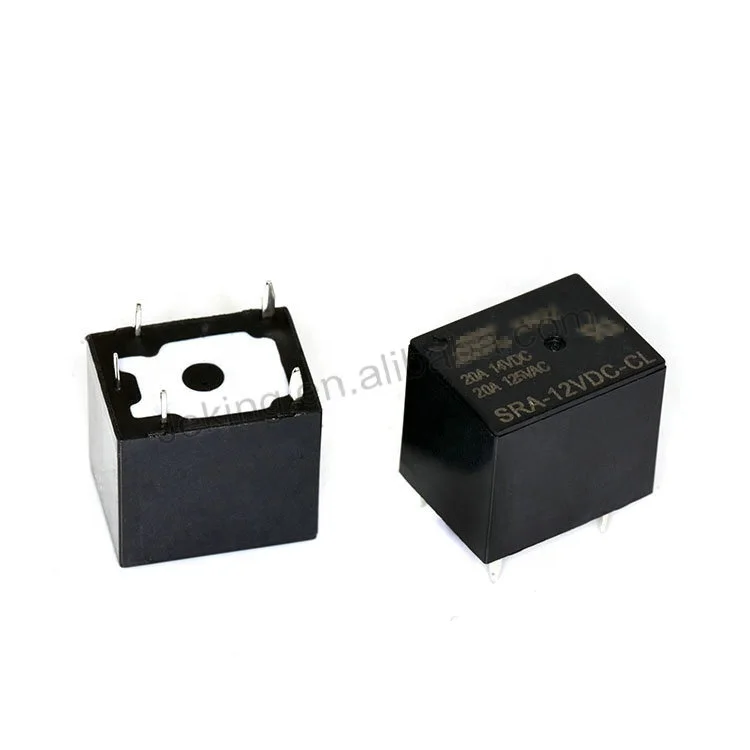

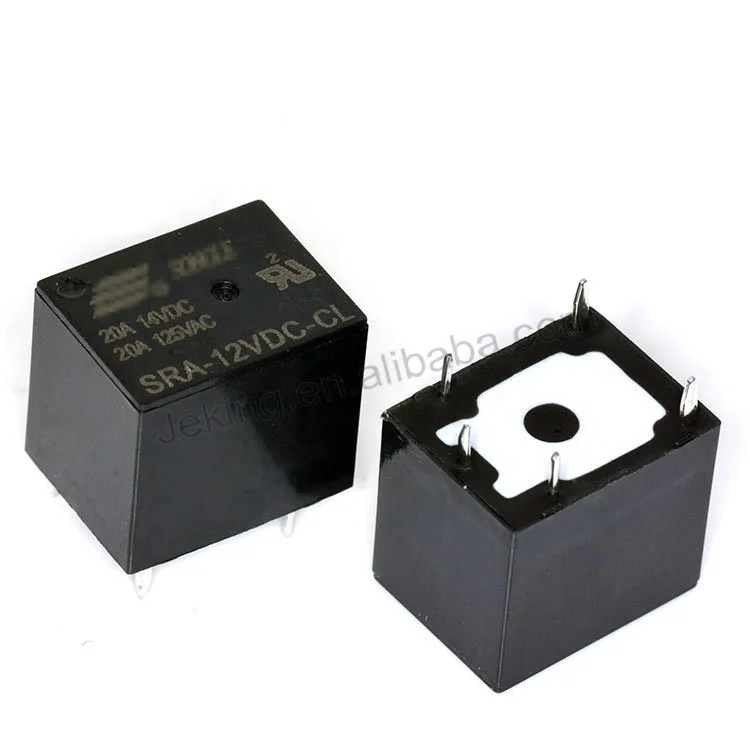

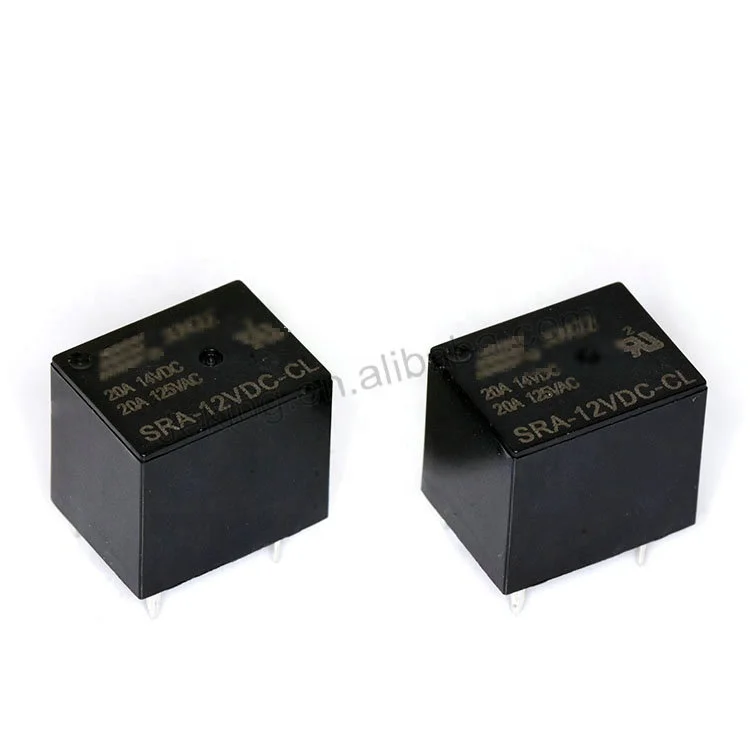

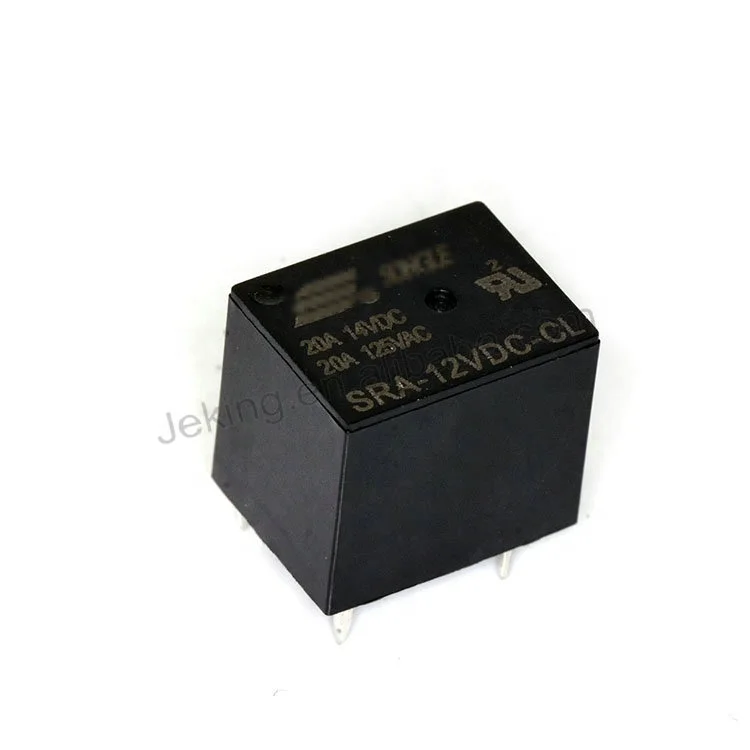

Jeking Electronic Components 20A 12VDC Relay SRA-12VDC-CL |
||||||
Type |
SPDT (single-pole double-throw) power relay, suitable for automotive and general applications |
||||||
Rated current: |
20A (resistive load) |
||||||
Working voltage |
12V DC |
||||||
Resistance: |
240 ohms |
||||||
Action/release time: |
≤10 milliseconds |
||||||
Maximum switching voltage: |
125V AC / 14V AC (depending on the load type) |
||||||
Contact resistance: |
≤100mΩ (tested at 1A 6VDC) |
||||||
Application |
Automotive electronics: vehicle control systems, power management; industrial equipment: home appliances (air conditioners, washing machines), industrial automation control;
general load switching: supports medium-power AC/DC load switching (such asmotors, lighting equipment)
|
||||||
Working temperature |
-40~+85 ℃ |
||||||
Part number |
SRA-12VDC-CL |
||||||
Mounting Style |
through hole |
||||||
Package/case |
DIP |
||||||
