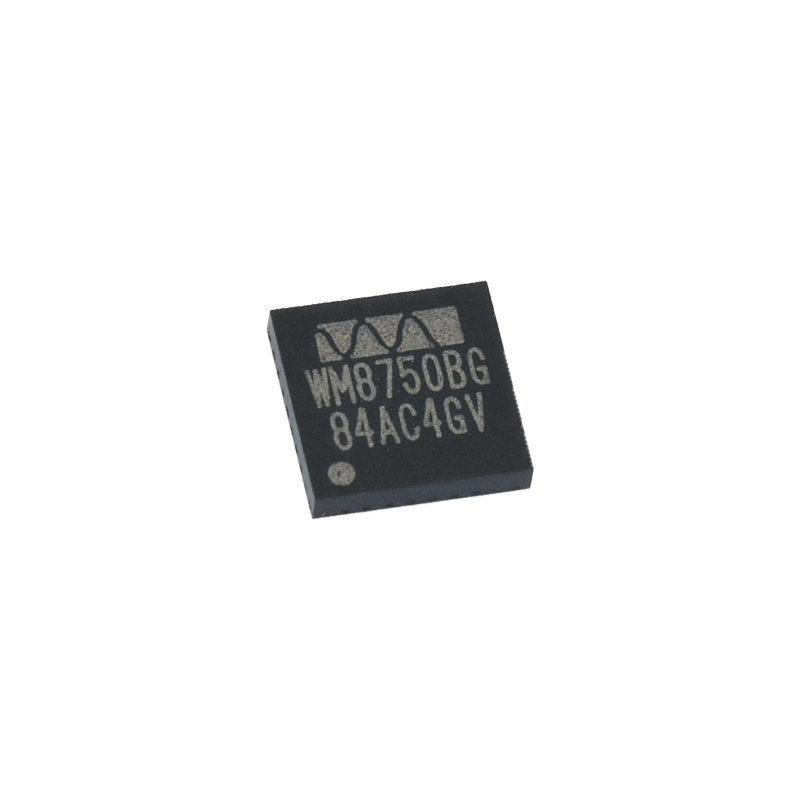

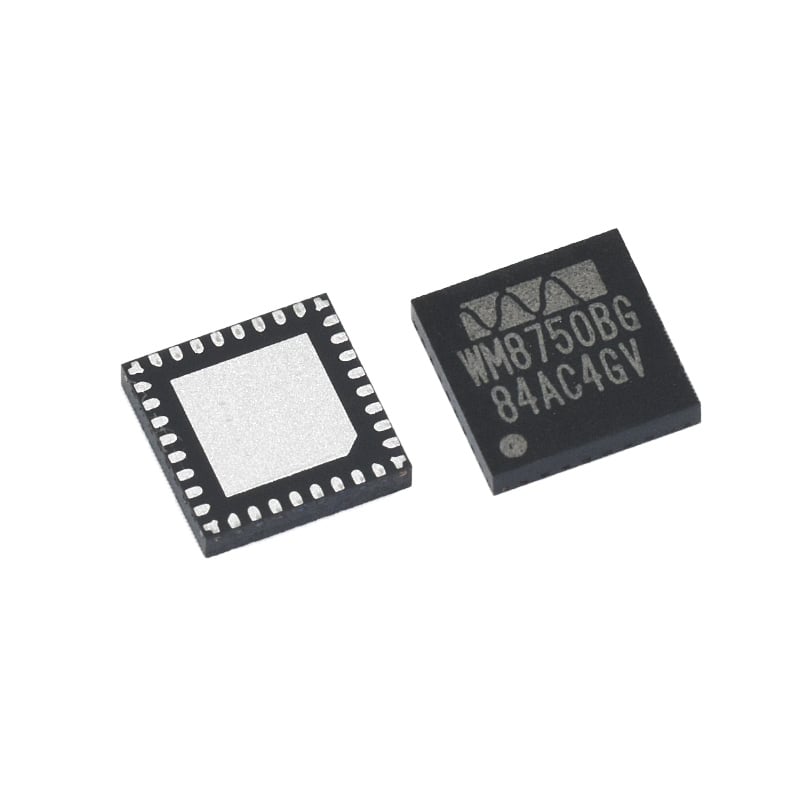

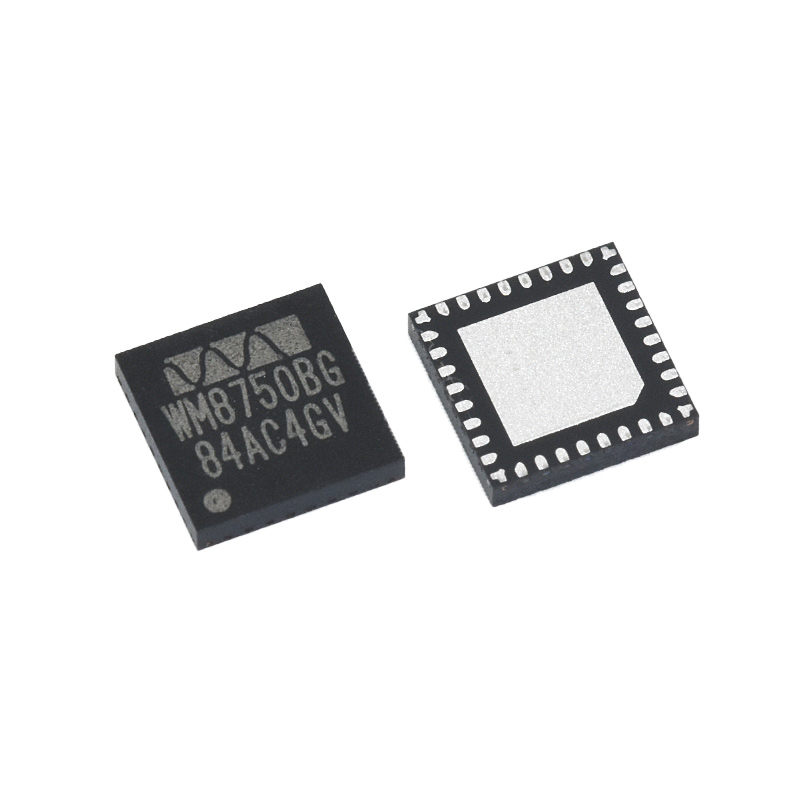

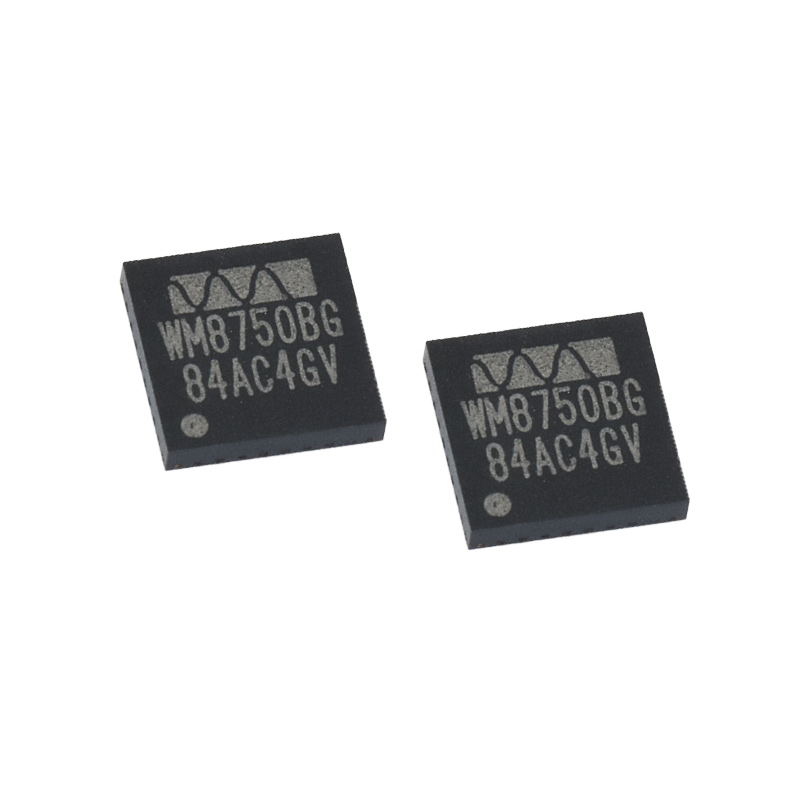

WM8750BG Integrated Circuitry Amplifier - Premium Audio/Video Amplifier IC for Multimedia Applications

The WM8750BL is a low power, high quality stereo CODEC designed for portable digital audio applications. The device integrates complete interfaces to stereo or mono microphones and a stereo headphone. External component requirements are drastically reduced as no separate microphone or headphone amplifiers are required. Advanced on-chip digital signalprocessing performs graphic equaliser, 3-D sound enhancement and automatic level control for the microphone or line input.

FEATURES

1. DAC SNR 97dB ('A' weighted), THD -85dB at 48kHz,3.3V

2.ADC SNR 88dB ('A' weighted), THD -80dB at 48kHz, 3.3V

3. Complete Stereo / Mono Microphone Interface-Programmable ALC / Noise Gate

4.On-chip 400mW BTL Speaker Driver (mono)

5. On-chip Headphone Driver>40mW output power on 162/3.THD -73dB at 5mW, SNR 98dB with 16 loadNo DC blocking capacitors required (capless mode)

6.Separately mixed mono output

7.Digital Graphic Equaliser

8.Low Power6 mW stereo playback (1.8V/1.5V supplies)13 mW record & playback(1.8V/1.5V supplies)

9 .Low Supply VoltagesAnalogue 1.8V to 3.6VDigital core: 1.42V to 3.6VDigital l/0: 1.8V to 3.6V

10.256fs/384fs or USB master clock rates:12MHz,24MHZ

11. Audio sample rates:8,11.025,16,22.05,24,32, 44.1,4888.2, 96kHz generated internally from master clock

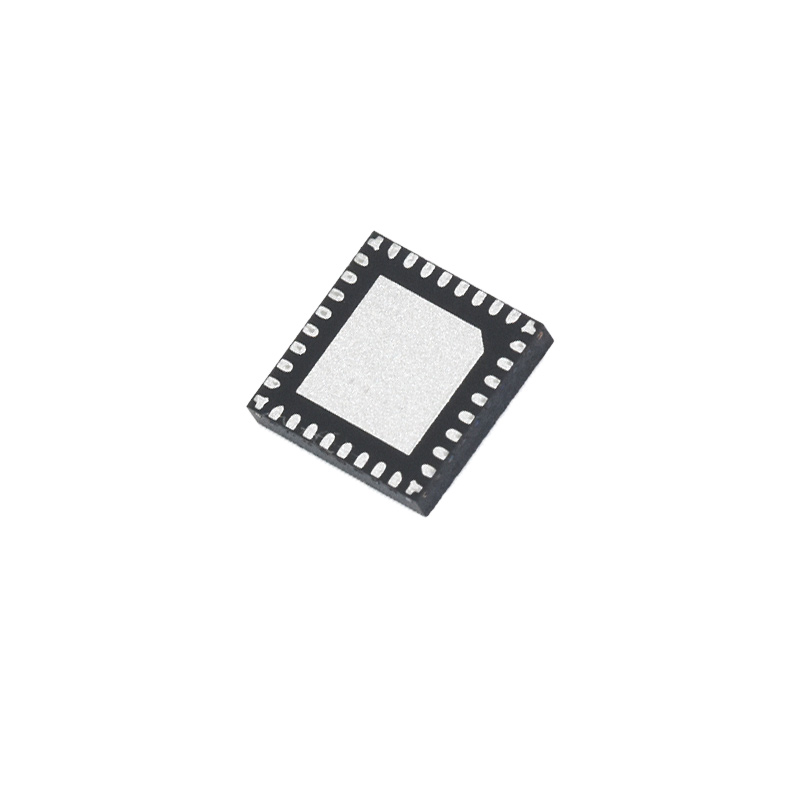

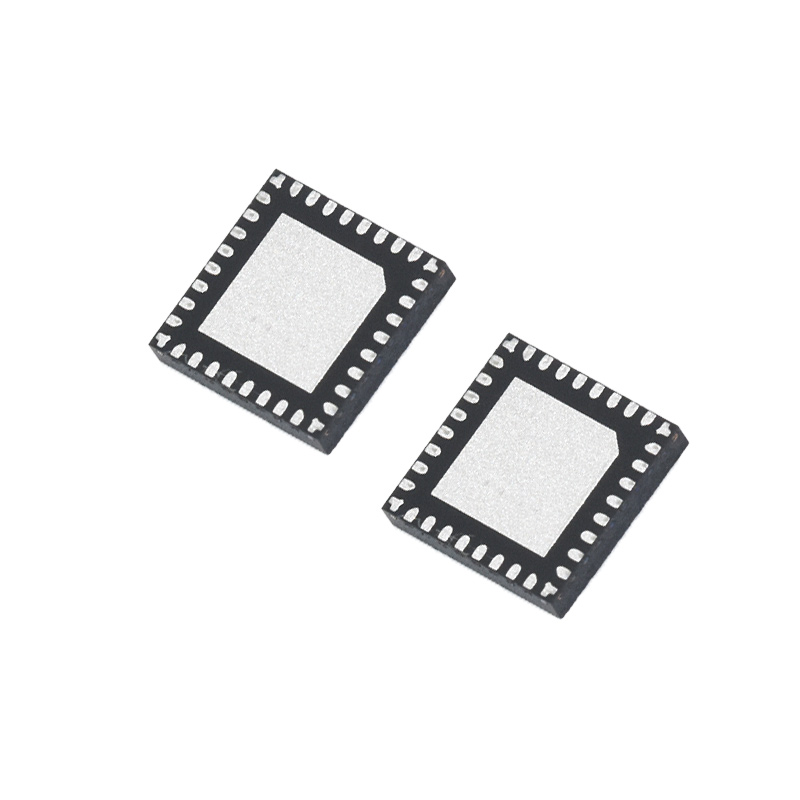

12. 5x5x0.9mm QFN package
